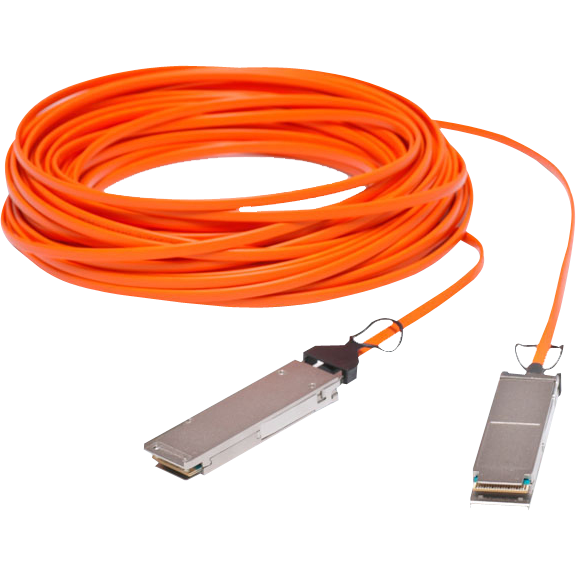

40G QSFP+ Active Optical Cable

Description:

QSFP active optic cables are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. It is compliant with the QSFP MSA and IEEE P802.3ba 40GBASE-SR4. TONGSION QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.

Features:

?  1. Full duplex 4 channel 850nm parallel active optical cable

?  2. Transmission data rate up to 10.3Gbit/s per channel

?  3. Hot pluggable electrical interface

?  4. Differential AC-coupled high speed data interface

?  5. 4 channels 850nm VCSEL array

?  6. 4 channels PIN photo detector array

?  7. Maximum link length of 300m on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF

?  8. Low power consumption <1.5W

?  9. Operating case temperature 0°C to +70°C

?  10. 3.3V power supply voltage

?  11. RoHS 6 compliant



Applications:

? 1. Infiniband transmission at 4ch SDR, DDR and QDR

? 2. 40GBASE-SR4 40G Ethernet

? 3. Data Centers
